Charging and Battery Systems for Electric Fleets.
The full IMECAR portfolio in one place: L-FLEX lithium batteries for golf carts and fleets, DC charging hardware and battery packs for vehicle, equipment and stationary applications. ZET Mobility sizes, integrates and supports each system as IMECAR's integration partner.
Request SpecificationsBack to IMECAR OverviewFinancing
Jump to
Made in America
Made in America. IMECAR DC chargers, L-FLEX lithium batteries and battery packs are American-made.
L-FLEX Series · Golf Cart Batteries
Lithium batteries for golf carts and electric fleets
One intelligent LFP battery platform with multiple energy options, built for golf carts, utility vehicles, commercial fleets and industrial EV applications.

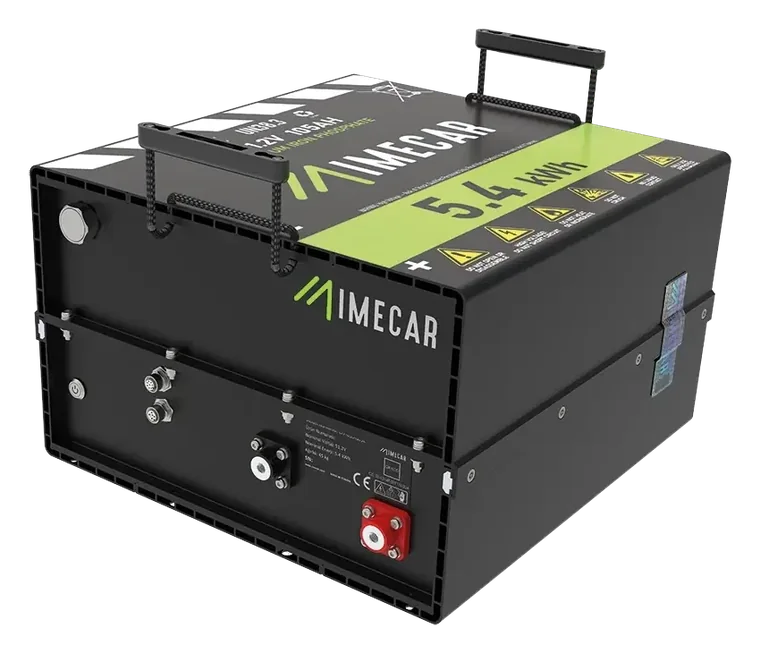

L-FLEX 5.4 kWh
Standard
Compact, near-square footprint for standard battery bays.
| Nominal voltage | 51.2 V |
| Capacity | 105 Ah |
| Energy | 5.4 kWh |
| Battery life | Up to 5,000 cycles |
| L × W × H | 400 × 391 × 244 mm |
| Weight | 45 kg (99.2 lb) |
| Bluetooth / Wi-Fi | Available |

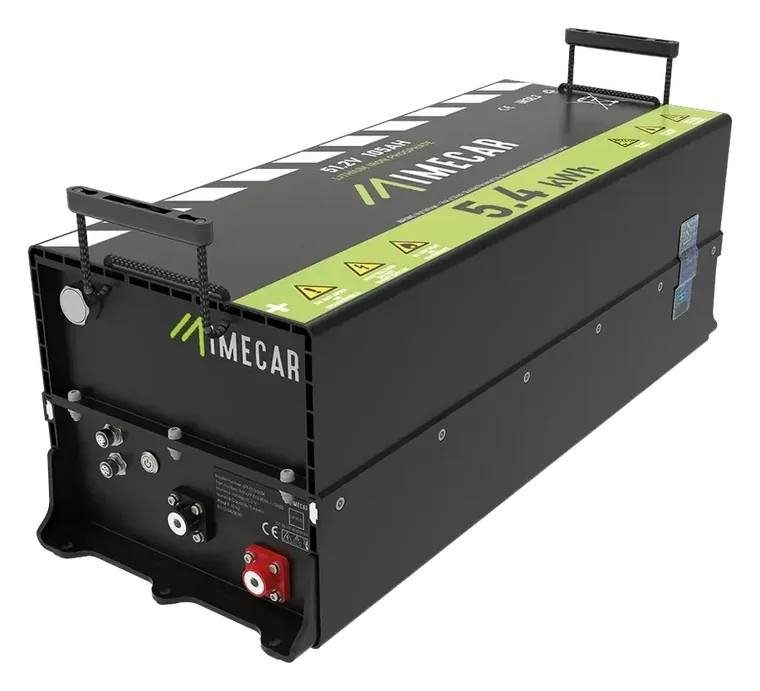

L-FLEX 5.4 kWh
Slim
Same energy in a narrow 271 mm profile for tight battery compartments.
| Nominal voltage | 51.2 V |
| Capacity | 105 Ah |
| Energy | 5.4 kWh |
| Battery life | Up to 5,000 cycles |
| L × W × H | 700 × 271 × 244 mm |
| Weight | 45 kg (99.2 lb) |
| Bluetooth / Wi-Fi | Available |

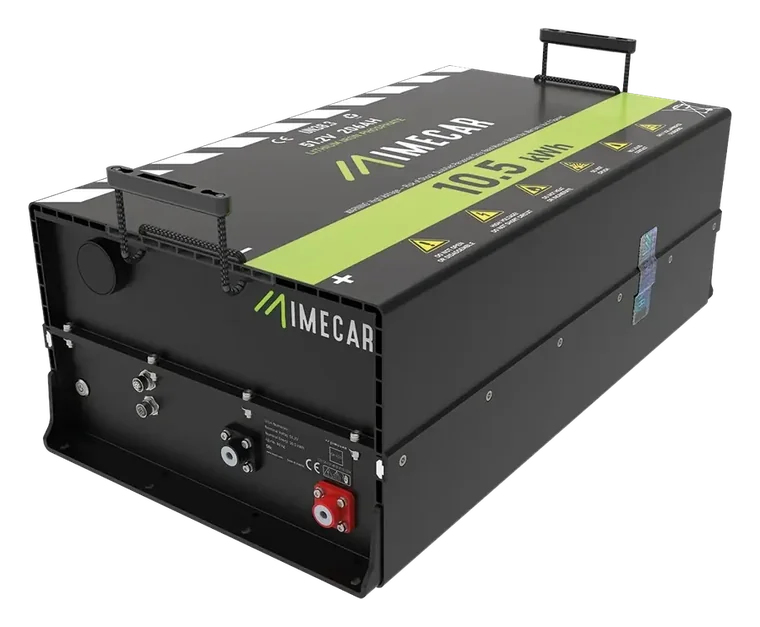

L-FLEX 10.5 kWh
Ultra
Nearly double the energy for longer range and heavier duty cycles.
| Nominal voltage | 51.2 V |
| Capacity | 206 Ah |
| Energy | 10.5 kWh |
| Battery life | Up to 5,000 cycles |
| L × W × H | 665 × 391 × 244 mm |
| Weight | 83 kg (183 lb) |
| Bluetooth / Wi-Fi | Available |
Automotive-grade LFP cells
Lithium iron phosphate chemistry for safety, stability and long cycle life.
IMECAR BMS
NXP-based battery management with cell balancing and voltage, temperature and short-circuit protection.
Flex PCB with Bosch Copperdot®
Co-engineered flex PCB for durability and reliable battery performance.
Aluminum housing, IP65
Aluminum module and case housing for protection and thermal management.
SmartDash fleet manager
Real-time monitoring, state of charge, health diagnostics and alerts over Bluetooth, Wi-Fi and cloud, with OTA software updates.
Florida-based support
Stock and service support in Florida, with remote diagnostics and technical assistance.
Golf cart dealers and fleets
Upgrade lead-acid golf carts to L-FLEX lithium. Ask about dealer pricing, Florida stock and volume programs for the U.S., Latin America and the Caribbean.
Charging
DC charging hardware
Floor-standing, cabinet, high-power and portable DC chargers for public, depot and fleet sites. Final model, power level and connector configuration are confirmed during site assessment.

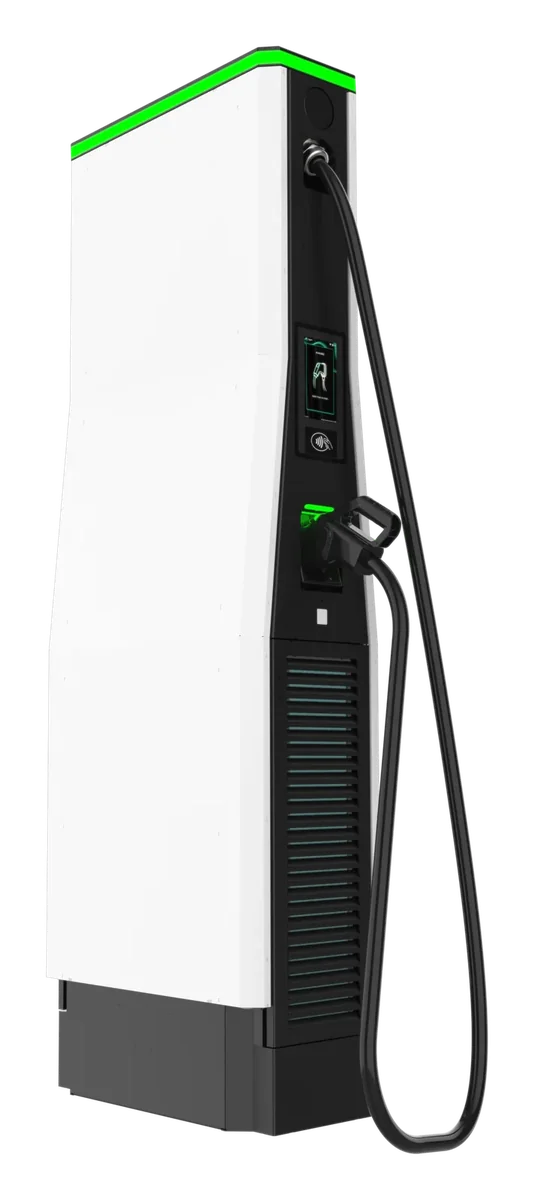

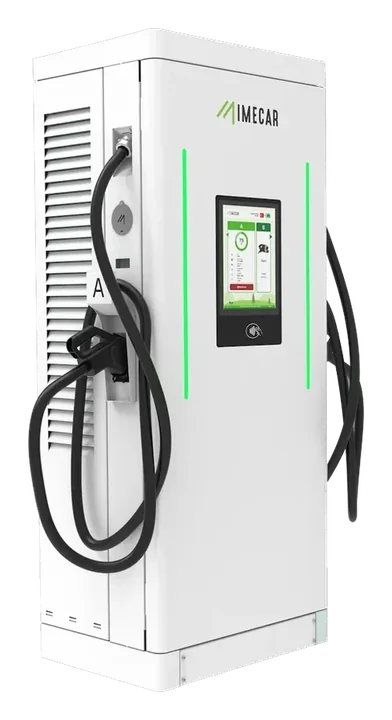

Floor-standing
Dual-port DC charger
Two charging points in a compact footprint, with touchscreen interface and contactless payment.

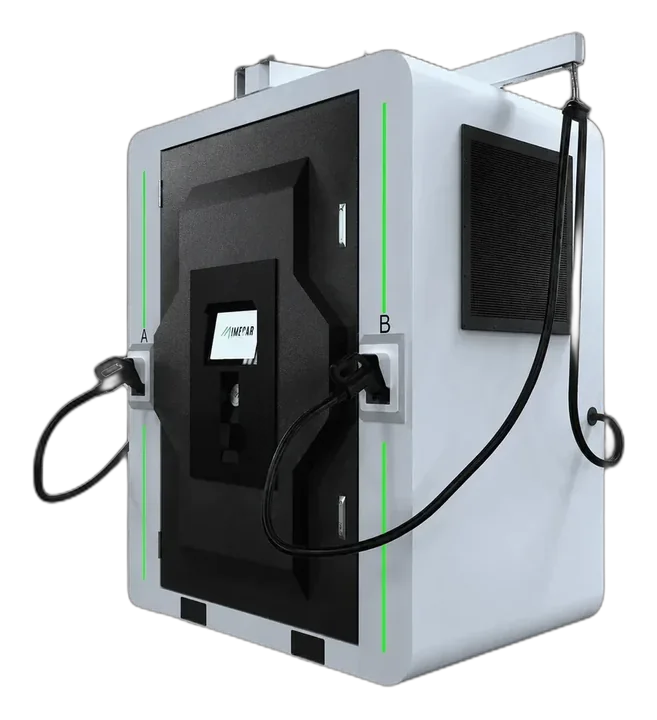

Depot
DC cabinet with cable management
Dual-port cabinet with overhead cable management for depots and high-traffic charging bays.

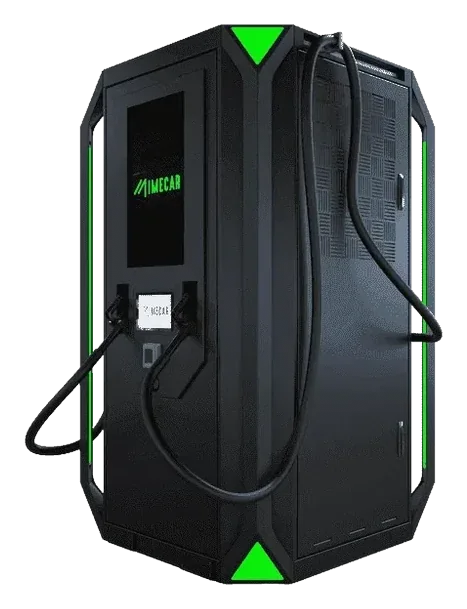

High power
High-power DC charger
Dual-cable unit for fleet operations that need to keep vehicle dwell times short.

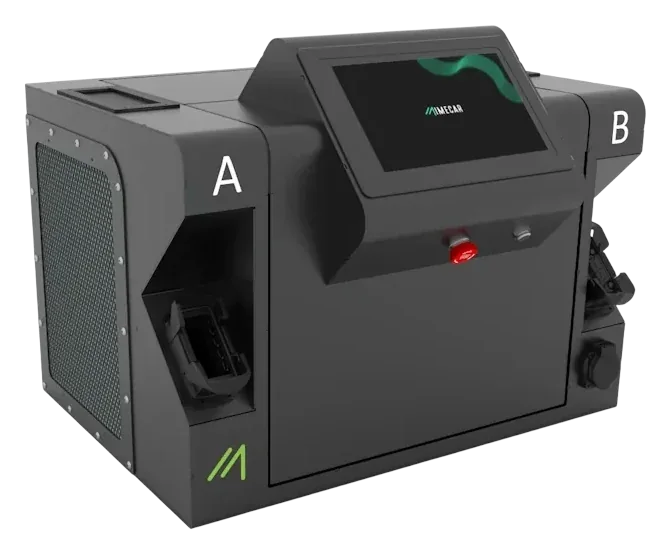

Mobile
Portable DC charger
Compact dual-port unit for service, temporary and emergency charging.
Battery Systems
Battery packs for multiple applications
IMECAR battery packs for vehicle, equipment and stationary energy applications. Specifications and application details are available on request.

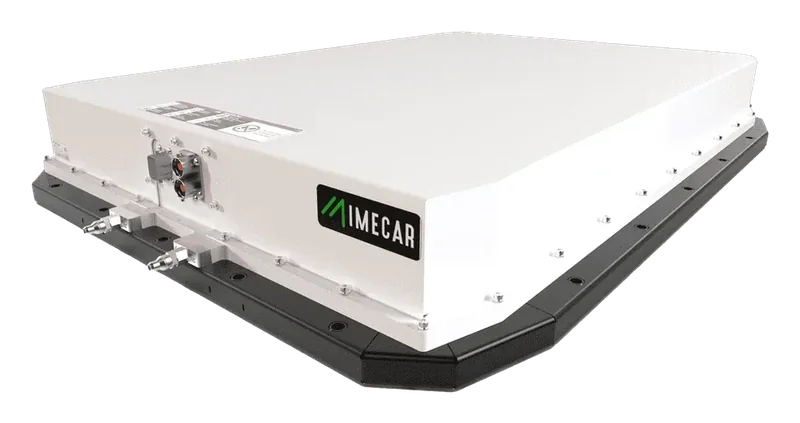

Low profile
Flat battery pack
Low-profile pack for vehicle and equipment integration.

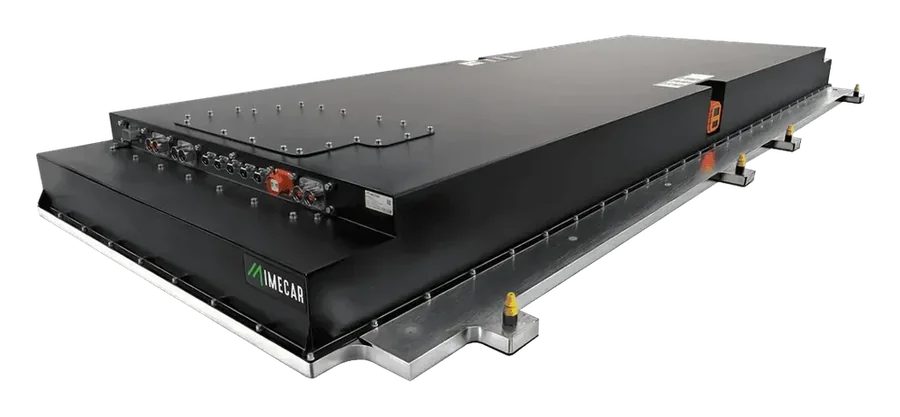

High capacity
Large-format battery pack
Skateboard-style platform for high-capacity applications.
Modular

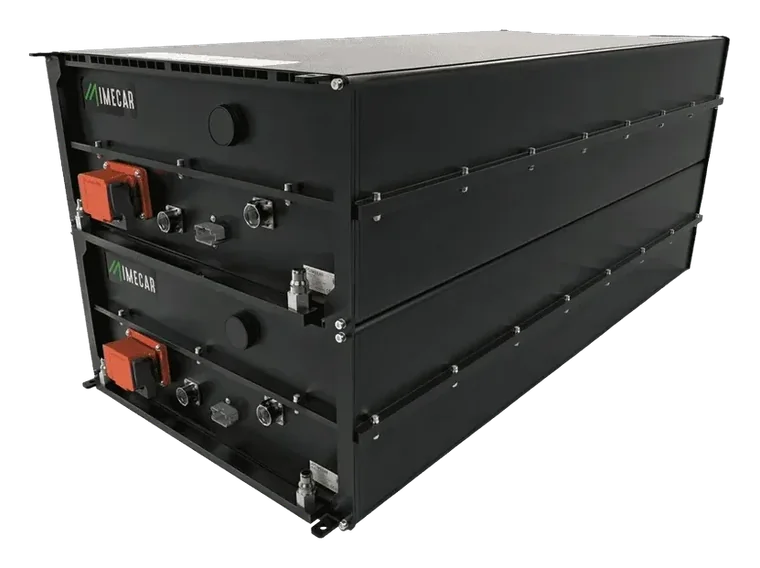

Modular stacked pack
Stackable modules that scale for commercial and stationary use.
Modular

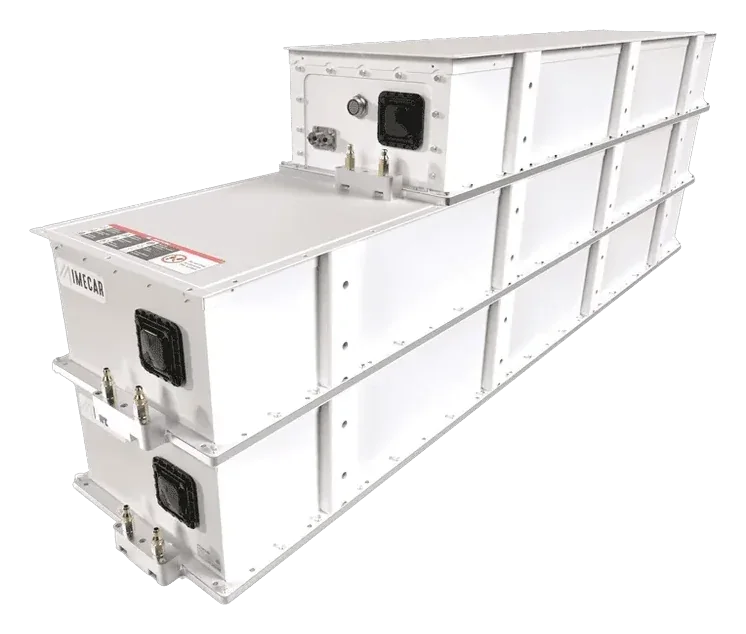

Modular pack with cooling interface
Stackable modules with an integrated cooling interface.
Ready to specify an IMECAR system?
Full portfolio available across the continental United States and U.S. territories, Latin America and the Caribbean.
