Scalable DC Fast Charging.
From standalone fast charging to modular power cabinets, ZET Mobility can integrate IMECAR systems around public, commercial and fleet charging requirements.

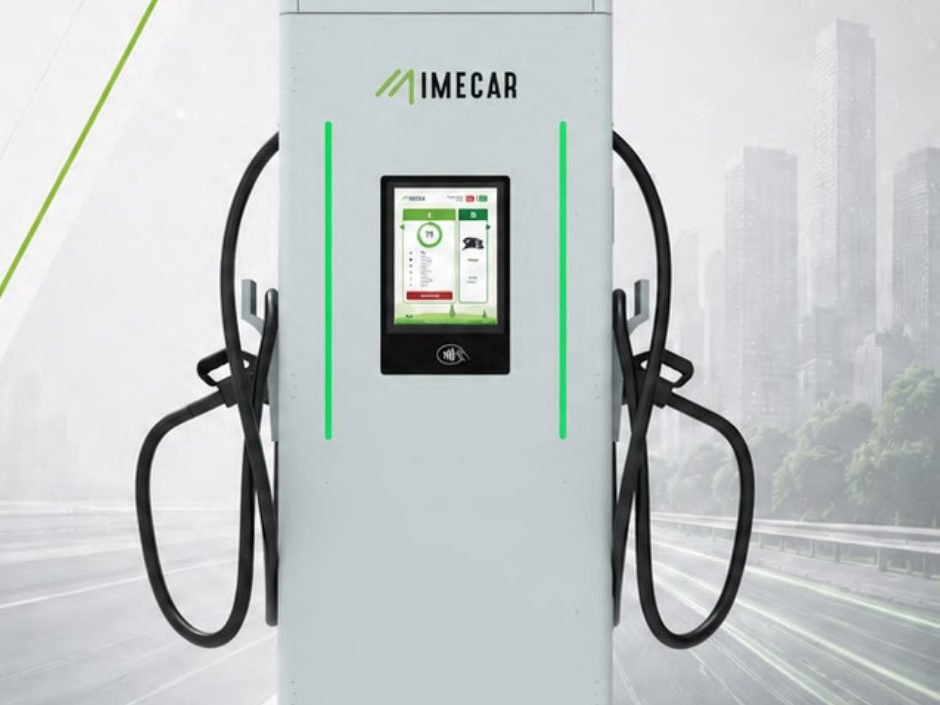

IMECAR Grid Pulse · Gen 1 & Gen 2
Grid Pulse
High-utilization DC charging with CCS / NACS compatibility and OCPP connectivity.
| Max. DC power | 90 / 180 / 270 kW |
|---|---|
| Output voltage range | 150 – 1000 V DC |
| Max. output current | 250 / 400 / 400 A |
| AC input | 400 V AC ±10%, 50 / 60 Hz |
| Connectors | CCS / NACS – dual gun (2 plugs) |
| Connectivity | OCPP 1.6, Ethernet / CAN, 3G / 4G / LTE, remote diagnostics and monitoring |
| User interface | 15-inch touchscreen; QR / RFID / NFC payment |
| Operating temperature | -30 °C to +50 °C |
Source: IMECAR 2026 Product Catalog. Specifications are subject to change; final configuration is confirmed during project design.

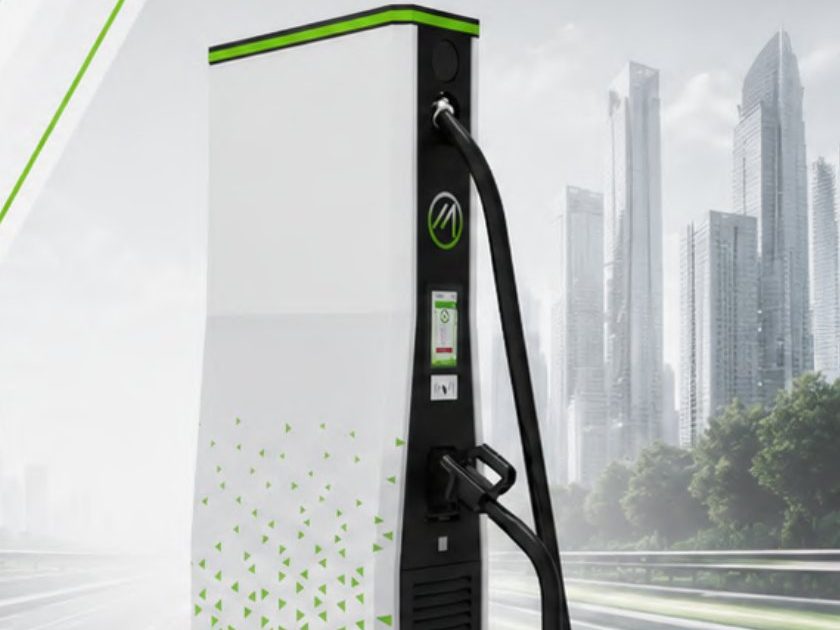

IMECAR Grid Core
Grid Core
Compact modular DC charging architecture designed for phased expansion.
| Max. DC power | 45 / 90 / 135 / 180 kW (modular) |
|---|---|
| Output voltage range | 150 – 1000 V DC |
| Max. output current | Up to 400 A |
| Footprint | 0.28 m² |
| AC input | 400 V AC ±10%, 50 / 60 Hz |
| Connectors | CCS / NACS – 1 plug |
| Connectivity | OCPP 1.6, Ethernet / CAN, 3G / 4G / LTE |
| User interface | 7-inch touchscreen; QR / RFID / NFC payment |
Source: IMECAR 2026 Product Catalog. Specifications are subject to change; final configuration is confirmed during project design.
